Cortes - La Muela II hydroelectric plant

Cortes - La Muela, Europe's largest hydroelectric power complex in Spain

Hydroelectric power Energy storage Operating plants

The Cortes-La Muela hydroelectric complex, located in the municipality of Cortes de Pallás (Valencia) in the Júcar river basin, has a turbination capacity of 1,762 MW and 1,293 MW of pumping capacity. With a total investment of more than €1.2 billion, La Muela became the largest pumped-storage hydroelectric plant in Europe.

Cortes-La Muela
Operating plant

Cortes-La Muela Hydroelectric Complex

Ubicación
Location Cortes de Pallás (Spain)
Potencia total instalada
Total installed capacity +1,800 MW
Inversión
Investment 1.2 billion euros
Puesta en marcha
Comissioning 1988 and 2014

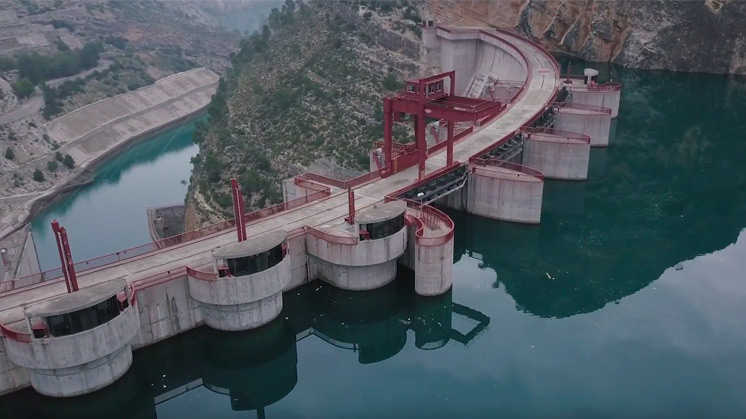

The Cortes-La Muela complex, located in an impressive canyon of deep blue waters of the Júcar River, began construction of its first phase in 1983. At that time, the Cortes dam was installed, with a height of 116 metres and arch-gravity type, with an installed power of 290 MW, and La Muela I, which has 634 MW of power in turbination and 549 MW in pumping. The upper reservoir occupies more than one million square metres and is capable of supplying the daily domestic consumption of 6.75 million people.

In 2015, the complex was expanded with the construction of the La Muela II hydroelectric power plant. With an installed capacity of 880 MW in turbination and 744 MW in pumping, this new facility made this complex the largest installed capacity in Europe with more than 1,800 MW in turbination and 1,293 MW in pumping.

On the other hand, while the Cortes II plant was created from an artificial cylindrical shaft, the La Muela I and La Muela II plants are underground in a cavern and 635,000 m3 and 270,000 m3 were excavated for their construction, respectively.

In these two hydroelectric power plants, the lower reservoir is connected to the upper reservoir by means of two penstocks that bridge a 500-metre drop, one 4.80 metres in diameter and 950 metres long in the case of La Muela and the other 5.45 metres in diameter and 850 metres long in the case of La Muela II.

These pumping stations are the only mass electricity storage systems and allow efficient management of peak hour coverage. At times when there is surplus energy in the system - from traditional or unmanageable renewable technology, instead of disconnecting facilities from the grid, it is possible to use this surplus energy to pump water and store it in a reservoir or overhead tank.

In the particular case of the Cortes-La Muela power plant, with what it produces during a year, it is able to supply the annual electricity demand of almost 400,000 homes, while avoiding the annual emission of more than two million tonnes of CO2.

The extension of the complex

The extension of La Muela II, commissioned in 2015, has three main elements: a penstock with an intake in the upper reservoir, an underground plant to house the equipment and a suction area in the lower reservoir. To build it, a 400-metre tunnel was initially dug, from which three galleries were opened to form the vault.

Underneath it, a cavity 115 m long, 50 m high and 20 m wide was perforated which, due to its size, would be able to house the Valencia Cathedral itself. At the same time, the transformer cavern and the rest of the galleries were created. The machinery was housed in the main cavern, and then the tunnels were fitted out and the main structures were assembled.

To install the penstock, a well was dug 800 metres long and 6 metres in diameter with a 45º inclination. Inside it, a 5.45 m diameter steel pipe was installed, introduced from the upper tank.

The modification of the Cortes-La Muela complex, which led to the construction of Muela II, involved 270,000 m3 of excavation and 90,000 m3 of concrete, which had to be loaded by more than 15,000 trucks.

Parts of a pumped-storage hydropower station

Illustration
  1. Transformers
  2. Power grid
  3. Surge chamber
  4. Upper reservoir
  5. Dam
  6. Intake and discharge tunnels
  7. Penstock
  8. Generator Unit
  9. Turbines
  10. Drains
  11. Lower resorvoir or river
